How to Ensure Precision in Custom Plastic Mold Manufacturing?

Plastic mold precision directly determines the quality, performance, and production efficiency of final products. This article outlines key methods to ensure precision across five core stages: design, machining, assembly, debugging, and maintenance.

1. Design: Foundation of Precision

1.1 Rational Mold Structure Design

Design based on product shape, size, and demolding needs: add side core-pulling mechanisms for undercut products; optimize sprue, runner, and gate layout for uniform melt flow. Use hot runner systems for ultra-high-precision products to stabilize melt conditions at gates.

1.2 Accurate Shrinkage Calculation

Calculate shrinkage based on material properties, product wall thickness, and process: 1.5%-3.5% for crystalline plastics (e.g., PP), 0.4%-0.7% for amorphous plastics (e.g., PS). Adjust cavity/core dimensions using supplier data and practical experience.

1.3 CAE Simulation Optimization

Use Moldflow to simulate injection molding, predicting melt flow, temperature distribution, and defects (e.g., shrinkage, warpage). Optimize gate positions and cooling channels to reduce test molding by 30%-50%.

2. Machining: Precision Manufacturing

2.1 High-Precision Equipment

Use high-speed CNC machining centers (positioning accuracy ≤±0.005mm) for complex cavities. For microstructures, apply EDM (minimal electrode wear) or wire EDM (accuracy ±0.002mm, Ra0.8μm).

2.2 Process Parameter Control

Set milling speeds at 8,000-15,000r/min for mold steel. Use aggressive parameters for roughing, finer settings for finishing to avoid deformation.

2.3 In-Process Inspection

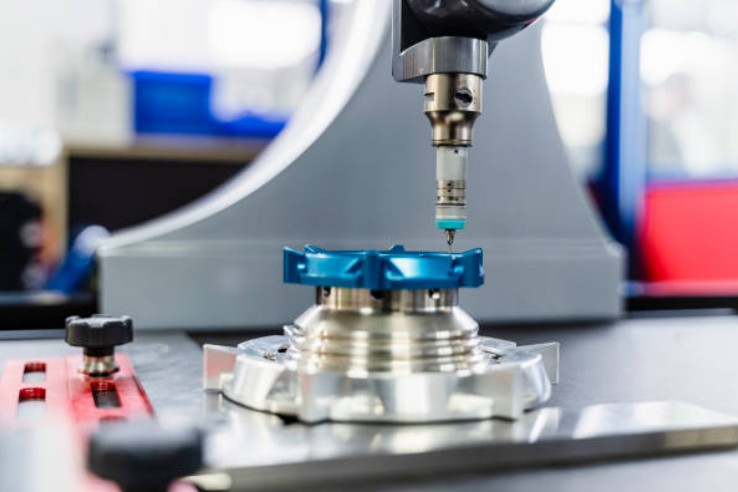

Verify dimensions with CMM (accuracy ±0.002mm) after key processes. Adjust parameters promptly for deviations.

3. Assembly: Ensuring Overall Precision

3.1 Cleaning & Deburring

Ultrasonically clean parts; remove burrs to ensure fitting accuracy.

3.2 Precision Fitting

Use transition fits (0.008-0.015mm tolerance) for guide pillars/bushes. Add conical positioning (±0.005mm) for high-precision molds. Control insert gaps at 0.01-0.03mm.

3.3 Assembly Debugging

Check parallelism/perpendicularity with dial indicators (parting surface error ≤0.01-0.03mm). Ensure smooth movement of ejection/core-pulling components.

4. Debugging: Process Optimization

4.1 Injection Parameter Tuning

Adjust melt temperature, pressure, and holding time. Optimize 3-5 times to achieve ±0.05mm product precision.

4.2 Mold Temperature Control

Use cooling systems (8-12mm diameter channels, 10-15mm from cavity) to keep temperature variation ≤5℃. Adopt 3D-printed conformal channels for complex molds (40%+ cooling efficiency improvement).

4.3 Product Inspection & Feedback

Test dimensions with calipers/CMM. Adjust molds/parameters for deviations (e.g., oversized parts from excessive cavity size/holding time).

5. Maintenance: Sustaining Precision

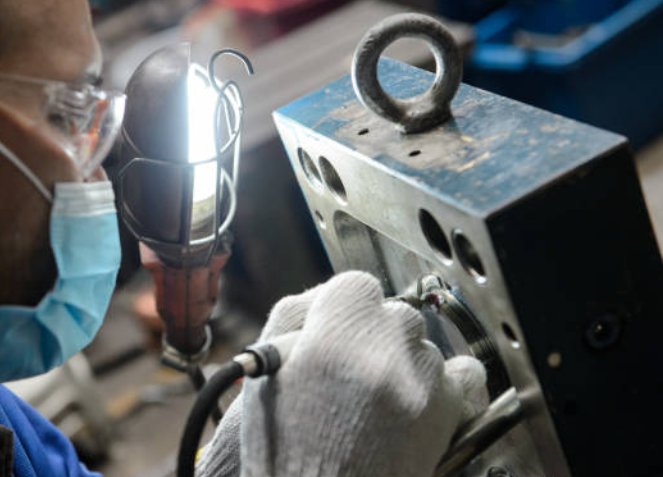

5.1 Regular Cleaning & Lubrication

Remove residue; lubricate moving parts to reduce wear.

5.2 Wear Monitoring & Repair

Use roughness/hardness testers. Repair minor wear by grinding; severe wear via laser cladding.

5.3 Replacement of Consumables

Maintain records for nozzles/seals; replace per service life.

In summary, precision in custom plastic mold manufacturing requires coordinated control across all five stages, with meticulous operations at each step.
