產品介紹

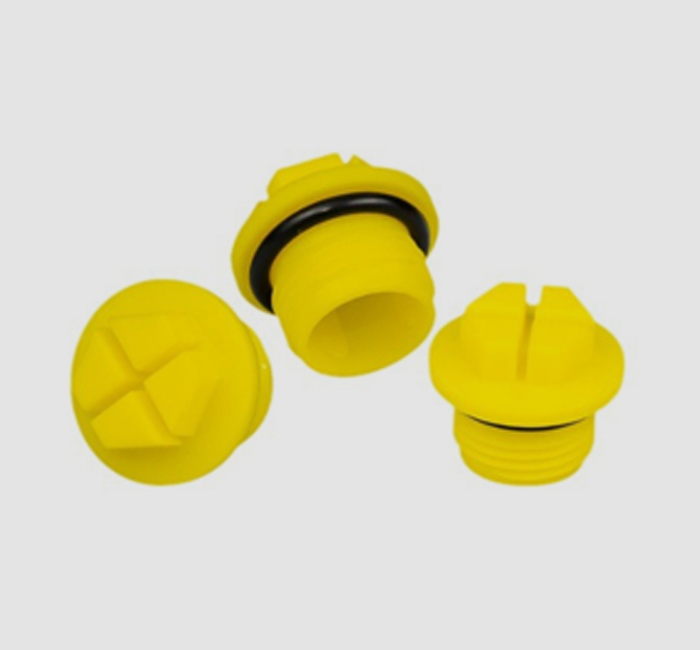

帶O型圈的十字螺紋塞
O-Ring Threaded Plugs
黃色HDPE
可以用扳手，螺絲刀，套筒扳手進行手動或電動的裝配或拆除
可用于液壓泵、液壓閥、油缸等設備的內螺紋保護，防止運輸過程中螺紋受到污染或受損

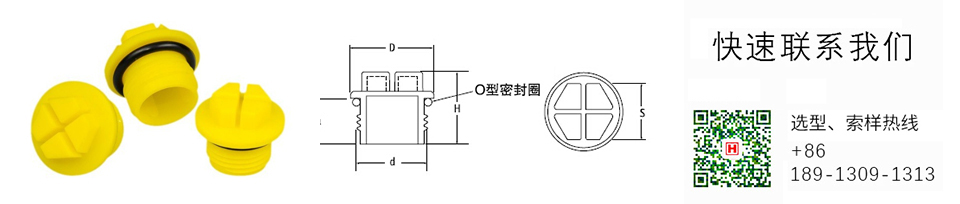

產品圖紙
產品規格齊全，更多規格詳情可與我們聯系：18913091313
| 螺紋類型 | 適用螺紋d | D(mm) | H(mm) | h1(mm) | S(mm) |
| 公制螺紋 | M8x1 | 12.5 | 17 | 10 | 6 |
| 公制螺紋 | M10x1 | 14.5 | 17.2 | 10 | 7 |
| 公制螺紋 | M10x1.5 | 14.5 | 19.2 | 12 | 7 |
| 公制螺紋 | M12x1 | 17 | 17.2 | 10 | 10 |
| 公制螺紋 | M12x1.5 | 17 | 19.2 | 12 | 10 |
| 公制螺紋 | M14x1.5 | 22 | 19.2 | 12 | 10 |
| 公制螺紋 | M16x1.5 | 24 | 20.4 | 12 | 13 |
| 公制螺紋 | M18x1.5 | 24 | 20.4 | 12 | 13 |
| 公制螺紋 | M20x1.5 | 26 | 20.4 | 12 | 15 |
| 公制螺紋 | M22x1.5 | 28 | 20.4 | 12 | 15 |
| 公制螺紋 | M24x1.5 | 30 | 20.4 | 12 | 17 |
| 公制螺紋 | M26x1.5 | 32 | 20.4 | 12 | 19 |
| 公制螺紋 | M27x2.0 | 33 | 24.6 | 15 | 19 |
| 公制螺紋 | M30x1.5 | 38 | 20.6 | 12 | 22 |
| 公制螺紋 | M30x2.0 | 38 | 24.6 | 15 | 22 |
| 公制螺紋 | M32x1.5 | 40 | 20.6 | 12 | 24 |
| 公制螺紋 | M33x2.0 | 40 | 24.6 | 15 | 24 |
| 公制螺紋 | M36x1.5 | 45 | 20.6 | 12 | 24 |
| 公制螺紋 | M36x2.0 | 45 | 24.6 | 15 | 24 |
| 公制螺紋 | M38x1.5 | 48 | 20.6 | 12 | 24 |
| 公制螺紋 | M42x2.0 | 50 | 24.6 | 15 | 24 |
| 公制螺紋 | M45x2.0 | 52 | 25 | 15 | 30 |
| 公制螺紋 | M48x2.0 | 55 | 25 | 15 | 30 |
| 公制螺紋 | M52x2.0 | 60 | 25 | 15 | 7 |
| UNF螺紋 | 3?8″x24 | 14 | 17.2 | 10 | 7 |
| UNF螺紋 | 7?16″x20 | 16 | 19.7 | 12.5 | 10 |
| UNF螺紋 | 1?2″x20 | 19 | 20.9 | 12.5 | 10 |
| UNF螺紋 | 9?16″x18 | 21 | 20.9 | 12.5 | 10 |
| UNF螺紋 | 5?8″x18 | 22 | 20.9 | 12.5 | 13 |
| UNF螺紋 | 3?4″x16 | 27 | 21.9 | 13.5 | 13 |
| UNF螺紋 | 7?8″x14 | 28 | 21.9 | 13.5 | 15 |
| UNF螺紋 | 1″x14 | 31 | 22.1 | 13.5 | 17 |
| UNF螺紋 | 11?16″x12 | 35 | 22.6 | 14 | 19 |
| UNF螺紋 | 13?16″x12 | 38 | 22.6 | 14 | 22 |
| UNF螺紋 | 15?16″x12 | 42 | 24 | 14 | 24 |
| UNF螺紋 | 15?8″x12 | 50 | 24 | 14 | 24 |
| UNF螺紋 | 17?8″x12 | 55 | 24 | 14 | 30 |
| BSP螺紋 | 1?8″x28 | 16 | 17.2 | 10 | 7 |
| BSP螺紋 | 1?4″x19 | 19 | 19.7 | 12.5 | 10 |
| BSP螺紋 | 3?8″x19 | 22 | 20.9 | 12.5 | 13 |
| BSP螺紋 | 1?2″x14 | 27 | 21.9 | 13.5 | 15 |
| BSP螺紋 | 5?8″x14 | 29.5 | 21.9 | 13.5 | 17 |
| BSP螺紋 | 3?4″x14 | 32 | 21.9 | 13.5 | 19 |
| BSP螺紋 | 7?8″x14 | 37 | 21.9 | 13.5 | 22 |
| BSP螺紋 | 1″x11 | 40 | 23.6 | 15 | 24 |
| BSP螺紋 | 11?4″x11 | 50 | 23.6 | 15 | 24 |
| BSP螺紋 | 11?2″x11 | 56 | 25 | 15 | 30 |
| BSP螺紋 | 13?4″x11 | 62 | 25 | 15 | 36 |
| BSP螺紋 | 2″x11 | 68 | 25 | 15 | 36 |

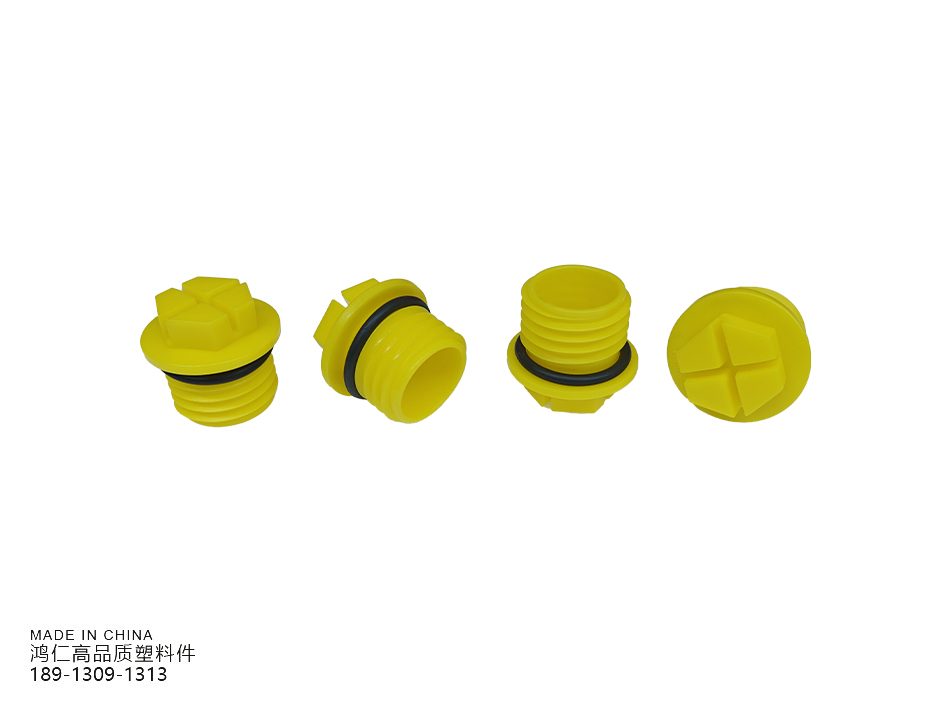

產品詳細圖
