Troubleshooting Insufficient Clamping Force in Plastic Molds

Insufficient clamping force causes flash, overflow, oversized parts, and mold damage. Many flash issues are mistakenly solved by increasing clamping force without identifying the real cause. This article provides a step-by-step method to diagnose and resolve insufficient clamping force.

Confirm True Clamping Force Shortage

Genuine flash from low clamping force:

Appears on parting lines, slides, inserts

Worsens with higher holding pressure

Improves significantly on larger machines

Local flash near gates may be caused by high temperature or speed, not clamping force.

Clamping Force Calculation and Setting

Basic formula:Clamping force (tons) = Projected area (cm2) × Cavity pressure (300–500 kg/cm2) / 1000

Set clamping force to the minimum value that eliminates flash, not maximum.

Step-by-Step Adjustment Procedure

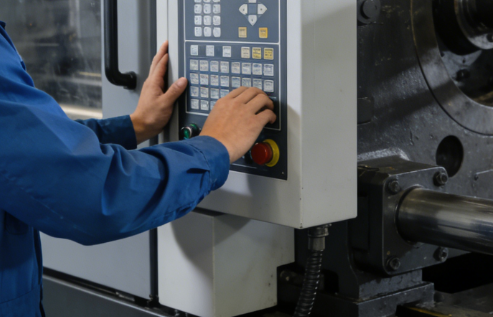

Check clamping force setting on the controller

Recalibrate clamping force

Verify mold closing position and high-pressure locking

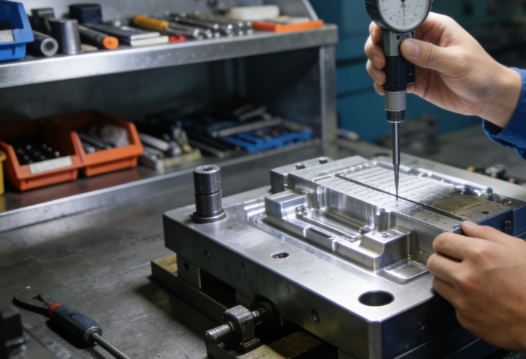

Check parallelism and cleanliness of parting surfaces

Increase clamping force gradually until flash disappears

Parallelism and Uneven Pressure

Uneven clamping often causes flash on one side. Clean mold mounting surfaces, align mold center, and adjust tension evenly on four tiebars.

Mold-Related “False” Flash Issues

Flash may occur even with sufficient clamping force due to:

Particles or dirt on parting surfaces

Worn slides or inserts

Insufficient mold support or stiffness

Excessively deep vents

These require mold maintenance, not machine adjustment.

Process Optimization to Reduce Clamping Demand

Lower barrel temperature, reduce injection speed, decrease holding pressure, and optimize fill profile to reduce cavity pressure.

Machine Capacity and Safety

Ensure mold projected area matches machine rating. Avoid continuous operation above 85–90% of rated clamping force.

Conclusion

Effective troubleshooting requires distinguishing real clamping force issues from mold or process problems. Correct calibration, parallelism, mold condition, and parameter settings eliminate flash while protecting molds and machinery.
